The term colorectal refers to the combination of the colon (large intestine) and the rectum, both of which are digestive system components. The colon absorbs water and electrolytes from digested food, whilst the rectum functions as the lowest portion of the large intestine, leading to the anus. Colorectal health is critical for digestion and waste removal. Colorectal cancer is a form of cancer that begins in the colon or rectum, which are referred to collectively as the colorectal region.


Colorectal cancer is the third most prevalent cancer worldwide and the fourth leading cause of death. It begins with benign polyps in the colon or rectum lining, which can develop into malignant tumors over time.

Risk factors include

  • obesity
  • ow-fruit and vegetable diet
  • physical inactivity
  • smoking

Treatment options include surgery, chemotherapy, radiation therapy, targeted therapy, or a combination. Preventive measures include a healthy lifestyle, exercise, weight management, and early medical intervention.

AI significantly aids in various aspects of colorectal cancer care, including early detection, personalized treatment planning, prognostic predictions, and drug discovery. It enhances medical imaging analysis, risk assessment, and patient data evaluation. By streamlining processes and providing insights, AI contributes to improved outcomes in colorectal cancer management.

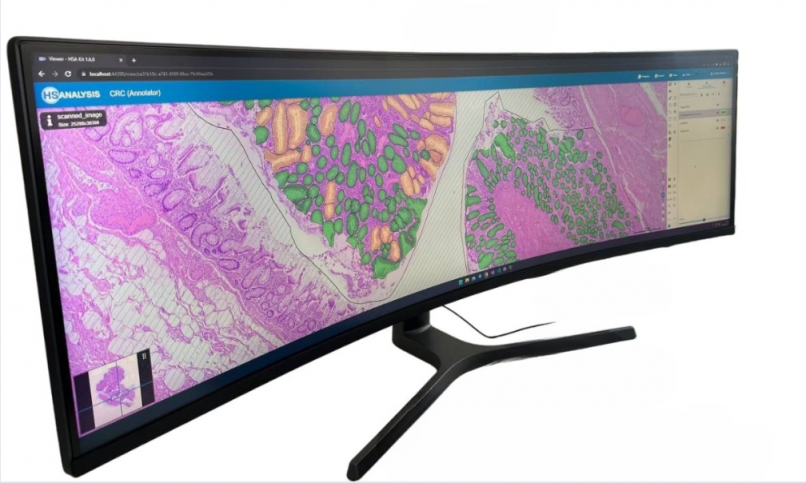

HS Analysis GmbH specializes in recognizing cells on the verge of developing cancer and malignancies. However, detection is insufficient without adequate data analysis. The HSA KIT program can extract data into Excel spreadsheets, allowing for complete result display via reports, graphs, and figures.

HSA KIT

The HSA KIT software provides an intuitive interface and advanced annotation features for precise detailing down to pixels. It enhances analysis by standardizing processes, maintaining consistency, and enabling reproducibility.

The Base ROI (Region of Interest) is extremely effectively classified by the HyperCRC-Net Module in HSA KIT into many sorts of glands:

  • Healthy tissue
  • Adinoma
  • Carcinoma
  • Other tissues (muscle, adipose or stroma)

In the context of colorectal cancer:

  1. Gesund – Healthy Tissue: Refers to normal, non-cancerous tissue in the colon or rectum.
  2. Adenoma: A precancerous growth or tumor that can develop in the colon or rectum lining. It has the potential to transform into cancer over time.
  3. Carcinoma: Cancer originating from epithelial cells in the colon or rectum. It can invade nearby tissues and potentially spread to other parts of the body.

These terms help differentiate between healthy tissue, precancerous growths, and cancerous tumors in colorectal cancer cases.


A picture of the detection of Healthy tissue and Adenoma.


An exapmle of detecting Carcinoma and Adinoma.


Zoom out view: Many healthy glands were found.


Zoom in view: Many healthy glands were found.


Zoom out view: Numerous Adenoma detected.


Zoom in view: Numerous Adenoma detected.


Zoom out view: Numerous Carcinoma detected.


Zoom in view: Numerous Carcinoma detected.

Staining and Markers

HE (Hematoxylin and Eosin) staining is a crucial histological technique in pathology. By highlighting cellular elements, it helps pathologists assess colorectal cancer using biopsy samples. The process involves staining tissue slices with Hematoxylin for nuclei and Eosin for cytoplasm and matrix, enabling the analysis of tissue properties and architecture. This aids in detecting, grading, and planning treatment for colorectal cancer patients.

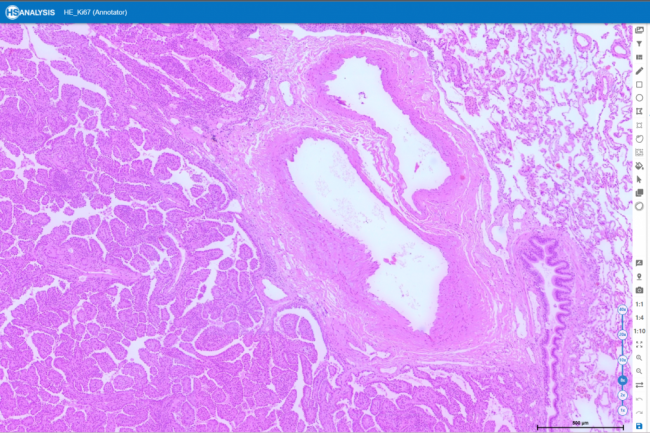

Hematoxylin and eosin staining enables the differentiation of cell types within tissue samples and visualization of cellular features and tissue structure.

„Ki-67 staining“ is an immunohistochemistry method that identifies Ki-67 protein expression in cells, indicating cell proliferation. It’s crucial in cancer research, predicting prognosis, and treatment evaluation. Under a microscope, it reveals Ki-67 protein presence, aiding in assessing cell proliferation rates and identifying dividing cells. It’s especially useful in distinguishing tumors from other growths and assessing disease severity risk.

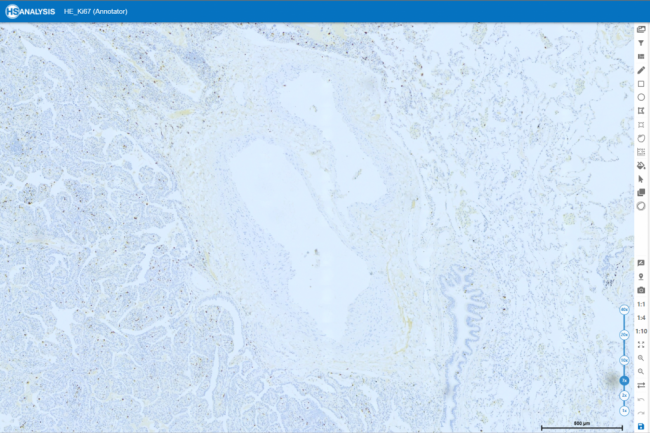

Example Ki67 immunohistochemistry-stained images of colorectal cancer

The HSA KIT offers a holistic approach to detect colorectal cancer from histopathological slides. It utilizes diverse stains and annotated datasets to train the HyperCRC-Net module, emphasizing colorectal cancer features. Details like cell structure, patterns, and Ki-67 expression are gathered for precise predictions. Detection, segmentation, classification, and grading of colorectal cancer rely on histological characteristics, Ki-67 expression, and proliferation rates. Additionally, it provides prognostic information for patient outcomes and treatment decisions.

HSA KIT includes splitscreen function. For the diagnosis you can just open two or more digital slides in the splitscreen function and check the environment of Ki-67 slide and the same position of HE slide.

you can zoom in only one slide and the second slide will change the same zoom level and position. In that way you can easy move and compare for the diagnosis two stanning’s.

In the image you see the Ki-67 stained nuclei and corresponding nuclei in HE stain and can make better decision for the correct diagnosis.

When analyzing histopathological slides, the HSA KIT offers a one-stop solution for detecting colorectal cancer using several stains.


An example of HE and ki67 stains

Deep Learning (DL)

The connection between deep learning, machine learning, and AI. Artificial intelligence (AI) refers to techniques that enable computers to mimic human behavior. Using algorithms that have been trained on data, machine learning enables computers to classify or predict things. Deep learning is a type of machine learning that analyzes data and detects patterns using multi-layered neural networks, much like the way the human brain does. The structure of the human brain served as the inspiration for the neural network’s architecture.

AI vs. machine learning vs. DL.

Ground Truth Data (GTD)

GTD refers to the real nature of the problem that a machine learning model is addressing and is required for the model to learn from labeled data. The more annotated the data, the better the algorithms will perform. Human evaluators or annotators must frequently produce ground truth labels in supervised learning algorithms, which may be costly and time consuming. The paper also compares GTD to ship engine fuel, with DL models serving as the engine and vast volumes of data serving as the fuel. With growing volumes of training data, DL models tend to improve, and the era of big data brings great prospects for future DL improvements.

DL algorithms improvement increases when increasing the amount of data.

Cost and Loss Function


The purpose of constructing a DL model is to reduce the difference between predicted and reality values. This is accomplished through the use of loss functions that are connected with each training example. The cost function is calculated by taking the average of the loss function values over all data samples. To decrease DL error, the cost function is optimized. We can attain the greatest outcomes in DL by improving the cost function.

Metrics

The matrices, which are useful for assessing the performance of machine learning models. When there are classification mistakes, confusion matrices are generated, and they have four possible values: True Positive, False Negative, False Positive, and True Negative. The confusion matrix may be used to determine classification metrics such as sensitivity, specificity, accuracy, negative predictive value, and precision.

Mean Average Precision (mAP)

The confusion matrix, Intersection over Union (IoU), recall, and precision are all part of the Mean Average Precision (mAP) calculation. It computes the weighted mean of precisions at each threshold, taking the increase in recall from the preceding threshold into consideration. The mAP is computed by calculating the AP for each class and then averaging the results over many classes. It is a helpful statistic for most detection applications since it gauges the trade-off between accuracy and recall.

Intersection over Union (IoU)

The standard commonly used to assess segmentation is Intersection over Union. This shows the overlap of the predicted bounding box coordinates with the ground truth box coordinates. A high IoU value indicates that the predicted bounding box coordinates are very similar to the ground truth box coordinates.

Creation of GTD

To generate ground truth data for training a deep learning model for colorectal cancer detection and classification, a multi-step process is followed. Initially, samples are acquired from individuals with colorectal cancer, typically in the form of tissue slides. These samples are then subjected to staining procedures such as Hematoxylin and Eosin (HE), Ki67, and CRC stains. The next crucial step involves the utilization of proprietary software, known as the HSA KIT. This software assists in automatically or manually defining the regions of interest (ROIs) within the samples. Within these ROIs, annotations are meticulously created using the HSA KIT tools, focusing on identifying colorectal cancer and categorizing it into three distinct structures: Healthy tissue, Adenoma, and Carcinoma. Furthermore, the final refinement of ground truth data involves manual annotation of the target areas within the selected ROIs, achieved by meticulously outlining the contours of the objects of interest. This comprehensive process ensures the availability of high-quality annotated data essential for training an accurate deep learning model for colorectal cancer analysis.

After creating the GTD, more GTDs were created to improve the model. The first time the model trained with 1647 GTD (1.6K). The second time the model trained with 4631 GTD (4.6K). The class distribution and their percentages in created data are given in the Table below.

The amount of data.

Selection of data set

In this work, the objective is to identify the most effective Deep Learning model for detecting colorectal cancer (CRC). Two distinct datasets are employed: one containing 1.6k annotations and another with 4.3k annotations. The primary aim is to investigate how the quantity of annotations influences the performance of our CRC detection model. To achieve this, separate training will be conducted using both datasets, allowing for a direct comparison of their respective performances. This analysis will enable us to ascertain whether having a larger number of annotations (4.3k) yields superior results in CRC detection compared to a smaller set of annotations (1.6k).

In this table you see GTD were used as training dataset for CRC DL model Number of annotations (1.6K).
In this table you see GTD were used as training dataset for CRC DL model Number of annotations (4.3K).

Deep learning models for CRC

After the creation of the GTD, to create the models, the steps to begin training for a deep learning model with the HSA KIT software. To begin, a model type must be chosen. This is referred to as instance segmentation or Segmentation. The structures on which the model should be trained must then be chosen. Then, in the „Augmentations“ panel, you may indicate that alternative cell
orientations are also detected. The model must then be given a name. After that, the model architecture, dataset settings, and hyperparameters for training the model are determined. Finally, the training can begin. Table below shows the different models that were trained.

Overview of the trained models for cell classification in CRC.

In Table below shows the hyperparameters used to build the deep learning models.

Overview of the trained models with the respective hyperparameters.

HyperCrcNet

The HSA KIT incorporates HyperCrcNet, a deep learning model tailored for colorectal cancer (CRC) imaging. HyperCrcNet has two versions:

  1. Type 1 based on the Vision Transformer (ViT) architecture, focuses on instance segmentation.
  2. Type 2 using the U-Net architecture, for segmentation.

Interpretation of trained model results

The settings presented in table below were selected to train the models. Loss and mAP were used to compare between models, where a lower loss and higher mAP are desirable characteristics for a better model. The loss and mAP of HyperCrcNet (Type 1) and HyperCrcNet (Type 2) models were compared with measured loss and IoU for the 1.6K and 4.6K GTD models.

Loss and mAP results of trained models (Instance Segmentation).
Loss and IoU results of trained models (Segmentation).

Visual interpretation of the results

After the AI training is finished for any model, evaluating trained models are important for the user, we always have numerical evaluation. The trained model may have been tested numerically and it gives reasonable result. There will be always numbers as result and it is possible to have reasonable result by coincidence but actually could be wrong. That is the reason that before trusting the AI model, the result always has to be checked visually and not depend only on numbers. After creating trusted AI model, it can be used confidently, fully automated and under the control of AI. In this section the results will interpreted visually. And this section illustrates the visualization of the instance segmentation and segmentation of both of the (type 1 & 2) AI models of the CRC images.

Figure below displays a specific area without applying any model to it, including the „Gesund“ structure.

is the same area with manual annotations specified by me. The result of HyperCrcNet (Type 1) both are the model trained with 1.6K and 4.6k GTD.
